This chapter covers
- Working with the filter chain
- Defining custom filters
- Using Spring Security classes that implement the Filter interface
In Spring Security, HTTP filters delegate different responsibilities to an HTTP request. Furthermore, they generally manage each responsibility that must be applied to the request. The filters thus form a chain of responsibilities. A filter receives a request, executes its logic, and eventually delegates the request to the next filter in the chain (figure 5.1).

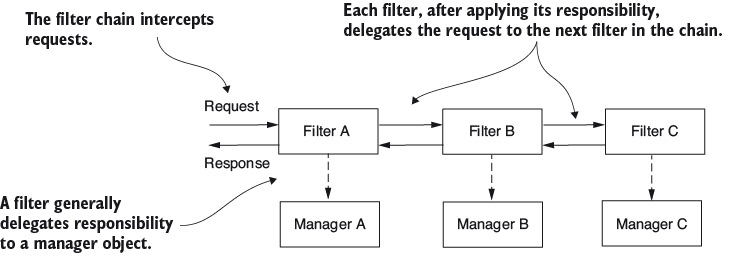

Figure 5.1 The request is passed to the filter chain. Every filter engages a manager to execute particular logic upon the request and then passes it down the line to the subsequent filter in the chain.

Let’s take an analogy as an example. When you go to the airport, from entering the terminal to boarding the aircraft, you go through multiple filters (figure 5.2). You first present your ticket, then your passport is verified, and afterward, you go through security. At the airport gate, more filters might be applied. For example, in some cases, right before boarding, your passport and visa are verified again. This is an excellent analogy to the filter chain in Spring Security. In the same way, you customize filters in a filter chain with Spring Security. Spring Security provides filter implementations that you add to the filter chain through customization, but you can also define custom filters.
