chapter five
5 Systems
5.1 Computer Architecture
5.1.1 Instruction Pipelining
Rather than starting with a definition of instruction pipelining that many would find unclear, let’s first understand why it’s necessary by exploring how CPUs process instructions. This will give us a clearer picture of the problem and why it’s a fundamental technique in modern CPUs.

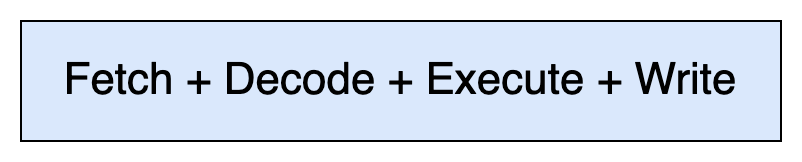

A CPU typically processes an instruction through four stages:
- Fetch: Fetch the instruction from memory.
- Decode: Decode the instruction to understand what operation is required.
- Execute: Execute the operation (e.g., arithmetic or logic operations).
- Write: Write the result back to memory or a register.
Note
This is a simplified view, but it should be enough to understand today’s concept.*

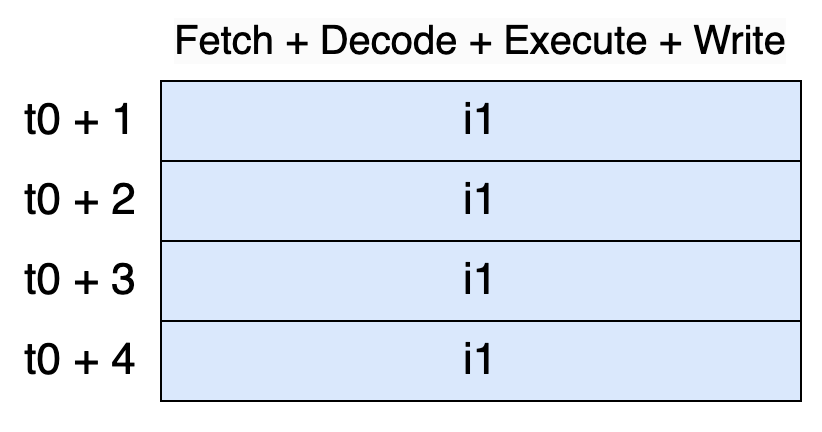

Assume that each of these stages takes one cycle to complete. Therefore, processing a single instruction would take four cycles (i1 stands for instruction 1):

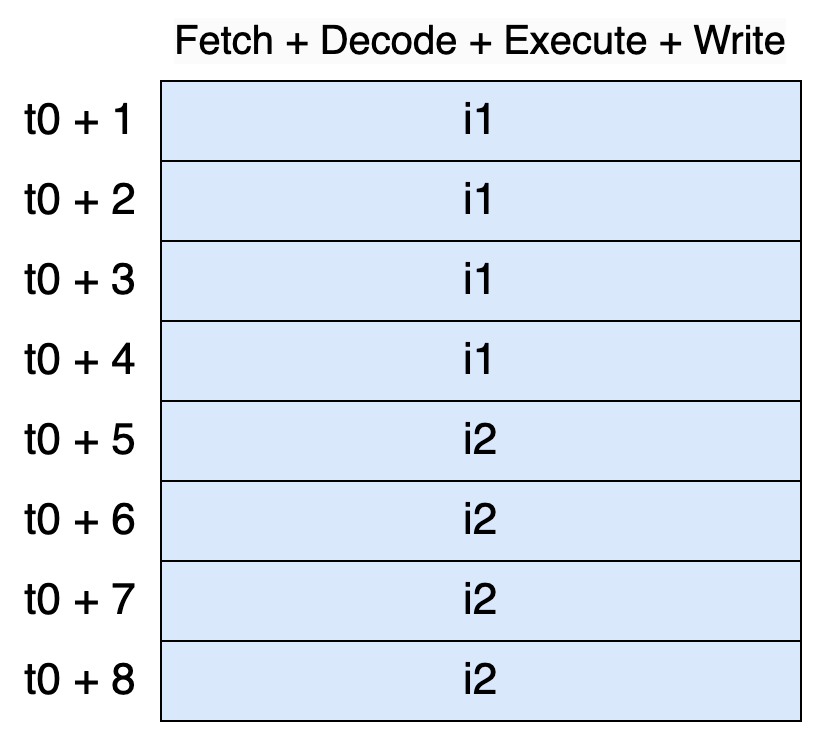

And processing two instructions would then take eight cycles:
If we were a CPU designer, how could we make things faster?
