Cascading blocked thread

As explained in Troubleshooting Java, Second Edition

A cascading blocked thread is a thread whose waiting for an external event causes other threads to wait in sequence rather than forming a circular deadlock.

A cascading blocked thread is a thread waiting for an external event while other threads wait behind it. Unlike a deadlock, the chain does not return to a thread already investigated. section 8.2.1

Investigate the pattern in a thread dump by:

• Removing threads that are not blocked. section 8.2.1
• Following lock identifiers through the blocked-thread chain. section 8.2.1
• Checking whether the chain ends at an external event rather than forming a circular wait. section 8.2.1

Typical external wait

A chain may end with a thread reading from a data source or calling an endpoint, leaving the other threads waiting in sequence. section 8.2.1

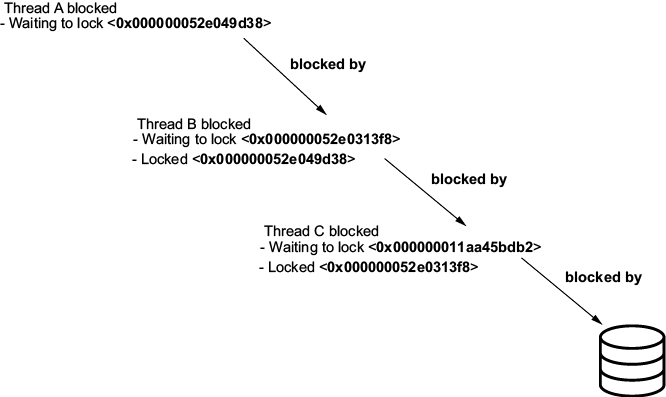

Figure 8.10 Cascading locks appear when multiple threads enter a chain where they wait for one another. The last thread in the chain is blocked by an external event, such as reading from a data source or calling an endpoint.

Use the diagram to distinguish a cascading lock chain from a circular deadlock and locate the external event at its end. section 8.2.1

How Troubleshooting Java, Second Edition covers it

How deep it goes

Defines the pattern and gives a thread-dump tracing procedure, but does not prescribe implementation fixes.

Examples

Uses Producer and Consumer threads, data-source reads, and endpoint calls to illustrate blocked chains.

What you can do after

Diagnose/debug with a thread dump by tracing blocked threads and identifying the external event at the chain’s end.

How it connects

Connects thread dumps with deadlocks, locks, and multithreaded architecture.
