Converter

As explained in Kafka Streams in Action, Second Edition

A converter is a Kafka Connect component that changes data between Connect's internal representation and a serialization format used by Kafka or an external system.

A converter changes data between Kafka Connect’s internal representation and the serialization format used by Kafka or an external system. In a source connector, it serializes records before they enter Kafka; in a sink connector, it deserializes records after they leave Kafka. section 5.3

Configure converters at the worker or connector level:

• Set key.converter to control serialization of record keys, such as org.apache.kafka.connect.storage.StringConverter. section 5.3
• Set value.converter to control serialization of record values, such as org.apache.kafka.connect.json.JsonConverter. section 5.3
• Treat worker settings as defaults: an individual connector can override them. section 5.3
• Configure related options such as value.converter.schemas.enable when the selected converter supports them. section 5.3

Postgres source connector

A JDBC source connector can use org.apache.kafka.connect.json.JsonConverter for values and set value.converter.schemas.enable to false. The connector then reads database records and serializes their values for Kafka. section 5.3

A converter is distinct from a Single Message Transform (SMT). An SMT performs a lightweight, one-record change between the connector and converter: before conversion for a source connector and after conversion for a sink connector. Use Kafka Streams or ksqlDB for joins, aggregations, or other complex operations. section 5.4

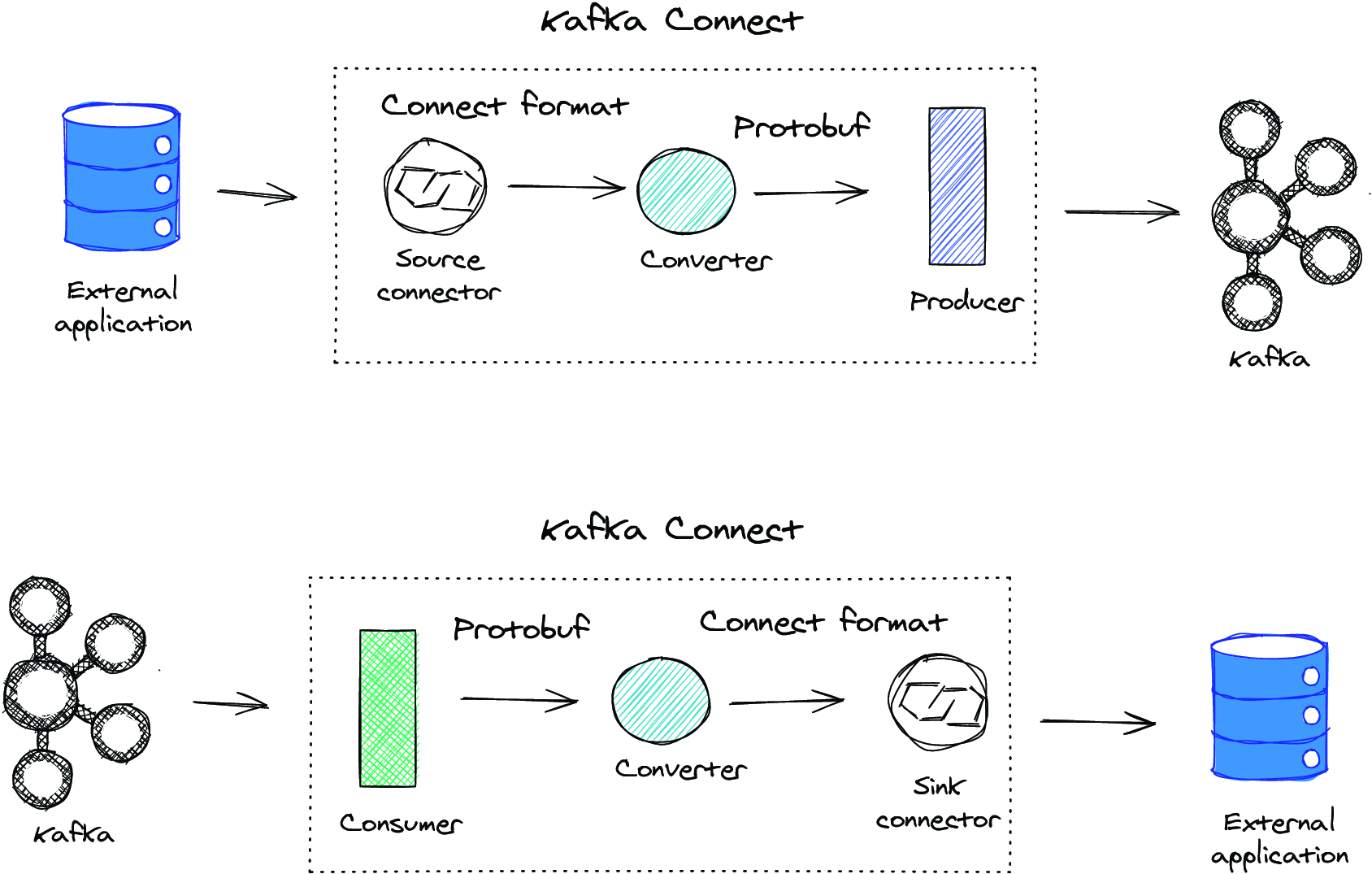

Figure 5.2 Connect converter changes the data format before the data gets into Kafka or after it leaves Kafka.

Follow the data path to see where conversion occurs before Kafka receives a record or after a record leaves Kafka. section 5.3

How Kafka Streams in Action, Second Edition covers it

How deep it goes

Defines conversion direction and key/value settings, but stops short of implementing a custom converter.

Examples

Uses StringConverter for keys, JsonConverter for values, and a JDBC source connector with schemas disabled.

What you can do after

Operate/configure Kafka Connect converters through worker defaults, connector overrides, and key/value serialization settings.

How it connects

Connects converters with source connectors, sink connectors, SMTs, Kafka Streams, and ksqlDB.
