fastThread

As explained in Troubleshooting Java, Second Edition

fastThread is a web-based tool that analyzes thread dumps and presents their contents through visualizations and diagnostic details.

fastThread is a web-based tool for turning a raw Java thread dump into visualizations and diagnostic details. Upload the dump file, then inspect the resulting analysis instead of manually parsing dense text. section 8.2.2 section 8.3

Use the analysis to investigate:

• Deadlock detection and the threads involved. section 8.2.2
• Dependency graphs, stack traces, resource consumption, and flame graphs. section 8.2.2
• Possible causes and next steps, while checking conclusions against the raw dump when necessary. section 8.2 section 8.2.2

Investigating a deadlock

After a frozen application produces a thread dump, upload it to fastThread and inspect the identified deadlock. The analysis can provide details about the “_Consumer” and “_Producer” threads, helping connect the observed failure to the involved locks and thread relationships. section 8.2.2

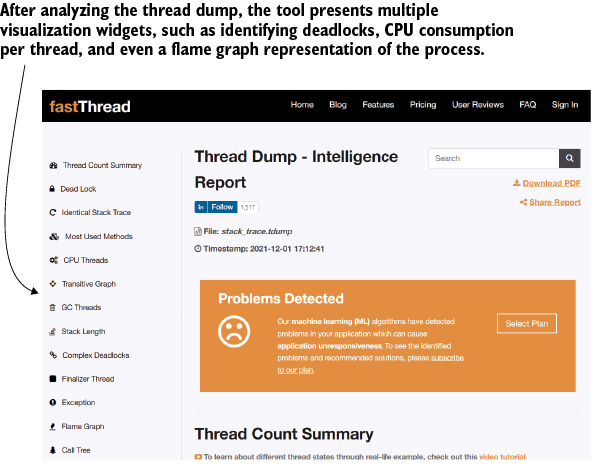

Figure 8.12 fastThread provides various details in an easy-to-read format. These details include deadlock detection, dependency graphs, resource consumption, and a flame graph.

Browse the visual analysis showing deadlock detection, dependency graphs, resource consumption, and a flame graph. section 8.2.2

How Troubleshooting Java, Second Edition covers it

How deep it goes

Provides interpreted visualizations and diagnostics but leaves raw thread-dump reading necessary when tools are unavailable or unclear.

Examples

Uses an uploaded raw dump and identifies a deadlock involving “_Consumer” and “_Producer” threads.

What it assumes

Assumes access to raw thread-dump data while reinforcing manual interpretation for environments without visualization tools.

What you can do after

Diagnose thread-dump problems with visual reports that expose deadlocks, thread relationships, and runtime details.

How it connects

Connects thread dumps with deadlocks, stack traces, dependency graphs, resource consumption, and flame graphs.
