Geo_distance query

As explained in Elasticsearch in Action, Second Edition

A geo_distance query retrieves documents whose geo-point or geo-shape values lie within a specified distance of a geographic point.

A geo_distance query finds documents whose locations fall inside a circle centered on a specified latitude and longitude. It suits nearby-venue searches, delivery areas, directions, and schools within a radius. section 12.0 section 12.1.2

Find restaurants within 175 km

GET restaurants/_search { "query": { "geo_distance": { "distance": "175 km", "location": { "lat": 50.00, "lon": 0.10 } } } } Here, distance sets the circle's radius, while location supplies its central point. The query returns restaurants within that radius. section 12.5

Use the query with these practical considerations:

• Specify distances in kilometers or miles, such as "175 km", "350 mi", or the same values without spaces. section 12.5
• Represent the central point with latitude and longitude; strings, arrays, WKT, and other supported formats are available. section 12.5
• Use geo_bounding_box for rectangular areas and geo_shape when locations or search regions require shapes rather than circles. section 12.3 section 12.4

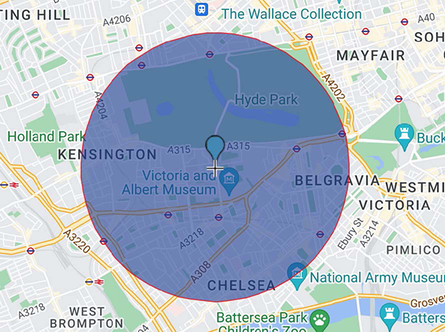

Figure 12.2 Addresses enclosed in a circular area constructed by a geo_distance query

Visualize the query as a dropped pin surrounded by a circular search area containing matching addresses. section 12.1.2

How Elasticsearch in Action, Second Edition covers it

How deep it goes

Defines the circular search model and demonstrates distance, location, units, and coordinate formats, while deferring geoshape experimentation.

Examples

Uses restaurant searches within 175 kilometers and nearby-school searches within a 10-kilometer radius.

What it assumes

Assumes locations are indexed as supported geospatial values, while introducing latitude, longitude, radius, and coordinate representations.

What you can do after

Apply it via Elasticsearch's search API to retrieve locations within a chosen radius of a geographic point.

How it connects

Connects geo_point and geo_shape data types with geo_bounding_box and geo_shape queries for alternative geographic regions.

liveBookmanning.com

Read Elasticsearch in Action, Second Edition on liveBook Get the book at manning.com

Related concepts

• geospatial queryused by · A geospatial query retrieves, selects, or orders data according to geographic locations, shapes, distances, or spatial relationships.
• geo_bounding_box querycontrasts with · A geo_bounding_box query retrieves documents whose geographic points or shapes intersect a rectangular geographic boundary.
• geo_shape querycontrasts with · An Elasticsearch geo_shape query matches documents whose indexed geographic shapes have a specified spatial relationship to a query shape.
