Mesh access point

As explained in Acing the CCNA Exam: Volume 2 Advanced Networking and Security

A mesh access point is a wireless access point that participates in a mesh network and forwards traffic through available mesh paths.

A mesh access point (MAP) is an AP without a wired connection to the distribution system (DS). It participates in a mesh basic service set (MBSS), relaying traffic wirelessly between clients and the DS through other APs. section 18.3.4

Key operational characteristics:

• A root access point (RAP) connects to the DS; a MAP reaches the DS through the wireless mesh. section 18.3.4
• A two-radio AP can dedicate one radio to client service and another to mesh relaying; a single-radio AP performs both jobs with reduced performance. section 18.3.4
• Unlike a standalone repeater that retransmits one AP’s signal, a MAP belongs to an interconnected mesh and routes traffic through an available path. section 18.4.1

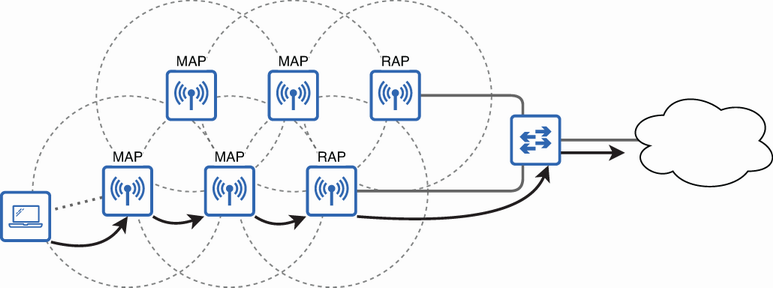

Figure 18.18 An MBSS is a mesh of wireless connections between two types of APs, RAPs and MAPs, that allows them to relay data to and from wireless clients.

Use the topology figure to distinguish RAPs, MAPs, wireless mesh links, and client traffic paths. section 18.3.4

How Acing the CCNA Exam: Volume 2 Advanced Networking and Security covers it

How deep it goes

Explains RAP and MAP roles, relay behavior, radio allocation, and repeater differences, without configuration or troubleshooting procedures.

Examples

Uses an MBSS topology figure and contrasts a mesh AP with a repeater extending a main AP’s coverage.

What it assumes

Assumes basic awareness of wireless APs and introduces the distribution system, RAP, MAP, and MBSS terminology.

What you can do after

Evaluate whether a wireless AP topology requires a wired DS connection, mesh relaying, or standalone signal repeating.

How it connects

Connects mesh access points with mesh basic service sets, root access points, distribution systems, wireless clients, and repeaters.
