Metadata API

As explained in Kafka for Architects

A metadata request is a Kafka client request that retrieves cluster metadata such as partition leadership and broker assignments.

A metadata request lets a Kafka producer discover which brokers lead each partition. The producer uses this broker-to-partition mapping to send records directly to the correct partition leaders rather than routing blindly through the cluster. section 3.2

Because leadership changes infrequently, the producer caches the mapping. The metadata.max.age.ms setting controls refresh timing and defaults to five minutes. A leadership change can make cached routing stale; the broker returns an error, after which the client refreshes metadata and retries the batch. section 3.2 section 2.3.1

Handling a partition-leader change

Suppose a producer has cached partition leadership and sends a batch to the former leader. That broker reports that leadership has changed. The client library retrieves current metadata, identifies the newly elected leader, and resends the batch; the temporary error is recorded in the application log. section 3.2 section 2.3.1

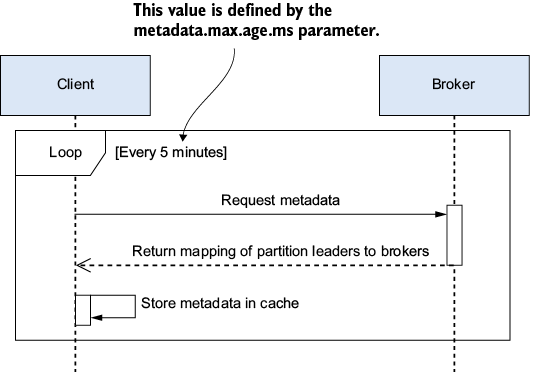

Figure 3.6 The process of receiving and caching metadata

Shows the request, broker mapping, producer-side cache, and metadata refresh cycle. section 3.2

How Kafka for Architects covers it

How deep it goes

Explains discovery, caching, refresh timing, and recovery from leadership changes without detailing protocol encoding.

Examples

Uses cached broker mappings, five-minute refreshes, stale-leader errors, and batch resends as concrete operational examples.

What you can do after

Diagnose producer routing failures by recognizing stale metadata and the client refresh-and-retry response.

How it connects

Connects producers with partition leaders, brokers, metadata caching, leader election, and replica assignments.
