Request-stream model

As explained in Spring in Action, Sixth Edition

The request-stream model is a communication pattern in which a client sends one request and a server returns a stream of zero or more values.

The request-stream model lets a client send one request and receive a stream of zero or more values. RSocket represents the request with Mono and the response with Flux, supporting asynchronous, nonblocking reactive communication. section 14.1

A Spring implementation follows this shape:

• Define a value object for each streamed result, such as a stock quote containing a symbol, price, and timestamp. section 14.2.2
• Map a route such as stock/{symbol} with @MessageMapping and capture the symbol using @DestinationVariable. section 14.2.2
• Return Flux<StockQuote>; Spring interprets the Flux as a request-stream interaction. Create values periodically with Flux.interval and map each interval to a result. section 14.2.2
• On the client, route the request through RSocketRequester, call retrieveFlux rather than retrieveMono, subscribe, and process each value. section 14.2.2

Streaming stock quotes

A client requests the price for XYZ once, then receives a new randomly generated StockQuote every second. This avoids repeatedly polling for the current price. section 14.2.2

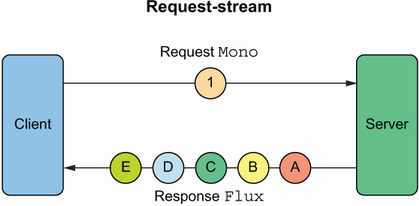

Figure 14.2 RSocket’s request-stream communication model

Visualizes the single request followed by a stream of response values. section 14.1

How Spring in Action, Sixth Edition covers it

How deep it goes

Explains the model, controller and client changes, and periodic Flux construction without descending into protocol internals.

Examples

Uses a Spring stock-quote controller that emits randomly priced StockQuote objects every second to a subscribed client.

What it assumes

Assumes familiarity with reactive types such as Mono and Flux while showing the request-stream distinction from request-response.

What you can do after

Apply it via Spring controllers and RSocketRequester to implement and consume periodic reactive streams.

How it connects

Connects RSocket with Reactive Streams, Mono, Flux, request-response, fire-and-forget, channel, and RSocketRequester.

liveBookmanning.com

Read Spring in Action, Sixth Edition on liveBook Get the book at manning.com

Related concepts

• channel modelcontrasts with · The channel model is a bidirectional communication pattern in which both participants can send data at any time.
• RSocketused by · RSocket is a binary application protocol that supports reactive interaction patterns including request-response, request-stream, and fire-and-forget communication.
• Fluxuses · Flux is a Project Reactor publisher type representing an asynchronous sequence that emits zero or more ordered values.
