Security scheme

As explained in Secure APIs

A security scheme is an OpenAPI configuration object that describes how an API request is authenticated and authorized, including credential type, placement, and scopes.

A security scheme is an OpenAPI configuration object that documents how an API authenticates and authorizes requests, including token type, placement, authorization details, and access scopes. section 8.1

Apply a security scheme deliberately:

• Decide which operations require authentication and whether user groups, such as drivers and passengers, need different access. section 8.1
• Define schemes under components.securitySchemes, then apply them globally or override them for individual operations. section 8.1
• For JWTs, validate signatures, claims, and permitted algorithms on every request; middleware is the recommended location. section 8.7

JWT bearer scheme

An OpenAPI 3.1.1 specification can define a JWT bearer scheme with type http, scheme Bearer, and bearerFormat JWT. A global security requirement can protect the API, while an operation such as /hello can set security: [] to remain public. section 8.1

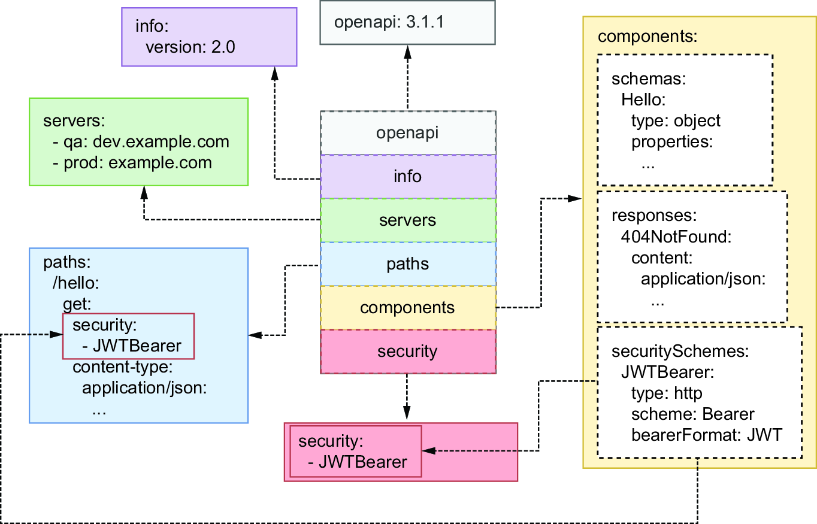

Figure 8.1 We define the security schemes that protect our API in the specification’s components section under securitySchemes, and we apply them globally to the API under the specification’s security field or per operation using the operation’s security field.

Shows how security schemes are defined in components.securitySchemes and applied globally or per operation. section 8.1

How Secure APIs covers it

How deep it goes

Explains scheme fields and application scope, then connects JWT schemes to validation without detailing every authentication flow.

Examples

Uses a JWT bearer definition and a globally protected API with a public operation override.

What it assumes

Assumes decisions about protected operations and user access, while introducing their OpenAPI representation.

What you can do after

Configure OpenAPI security schemes globally or per operation and recognize essential JWT validation checks.

How it connects

Connects OpenAPI security schemes with JWT, OIDC, access tokens, scopes, and role-based access control.
