Shared_lock

As explained in Object-Oriented Software Design in C++

A C++ standard library lock-management class that provides shared ownership of a mutex for concurrent readers.

shared_lock manages shared ownership of a shared_mutex. Multiple reader threads can hold shared locks simultaneously, while a writer using unique_lock must wait until all readers release the mutex. section 16.2.2

Use shared_lock when a critical region only reads shared state:

• Pair shared readers with unique_lock writers: readers may coexist, but neither readers nor writers may overlap a writer. section 16.2.2

Meter readers

Three logger threads acquire shared_lock to copy the meter setting and log it. Technician threads acquire unique_lock while changing the setting, preventing readers from observing an active update.

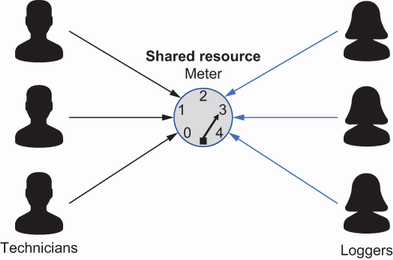

Figure 16.6 Three technicians simultaneously attempt to set the meter’s value; meanwhile, three loggers attempt to read and log the meter’s current setting. Therefore, the meter is the shared resource. Only one technician should be setting the meter at a time, and no logger should read the meter while a technician is setting it. However, unless a technician is setting the meter, multiple loggers can be reading it at the same time.

The technician-and-logger scenario shows why concurrent reads are permitted while writes require exclusive access. section 16.2.2

How Object-Oriented Software Design in C++ covers it

How deep it goes

Explains shared and unique ownership and demonstrates scoped locking, but does not detail implementation internals.

Examples

Demonstrates logger threads reading a shared meter while technician threads update it.

What it assumes

Assumes mutexes, threads, shared resources, and critical regions; distinguishes reader and writer behavior explicitly.

What you can do after

Apply it via C++ shared_mutex to protect read-only critical regions in multithreaded programs.

How it connects

Connects shared_lock with shared_mutex, unique_lock, mutexes, critical regions, and the reader-writer problem.

liveBookmanning.com

Read Object-Oriented Software Design in C++ on liveBook Get the book at manning.com

Related concepts

• shared_mutexuses · A C++ standard library mutex type that permits either exclusive ownership by one thread or shared ownership by multiple threads.
• lock_guardalternative to · std::lock_guard is a C++ standard library class template that acquires a mutex when constructed and releases it when destroyed.
• unique_lockcontrasts with · std::unique_lock is a C++ standard library class template that manages exclusive ownership of a mutex and supports deferred locking, unlocking, and ownership transfer.
