Source point

As explained in Advanced Algorithms and Data Structures

A source is the distinguished network vertex through which flow originates and which has no inbound flow.

A source point, or source vertex, is the distinguished vertex where flow begins. In a directed network, it has outgoing edges but no inbound flow; the corresponding destination is the sink. section 18.4.1

Use the source point to interpret direction and flow:

• Read each directed edge from its source vertex, the first vertex in the ordered pair, toward its destination vertex. section 14.1
• In a flow network, begin routing at the source and finish at the sink; edge weights represent capacities, while assigned values represent actual flow. section 18.4.1
• Do not confuse a network source with the source of an individual edge: a general directed graph may use source to mean that edge's first endpoint. section 14.1 section 18.4.1

A network with a source

In a network written as N=(V,E), designate s as the source and t as the sink. Flow leaves s through outgoing edges, passes through intermediate vertices, and ultimately reaches t. Figure 18.22 depicts such a network and labels a maximum flow of 6. section 18.4.1

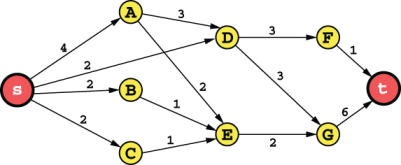

Figure 18.22 An example of a network, whose maximum flow is 6.

Use the network diagram to locate the source, sink, directed edges, capacities, and possible flow routes. section 18.4.1

How Advanced Algorithms and Data Structures covers it

How deep it goes

Defines the source as an endpoint with only outgoing edges and contrasts it with ordinary edge-source terminology.

Examples

Uses a network diagram with vertices s and t and a stated maximum flow of 6.

What it assumes

Assumes familiarity with vertices and edges while defining source and destination terminology for directed graphs.

What you can do after

Evaluate a directed network by identifying its flow origin and distinguishing it from an edge's source endpoint.

How it connects

Connects source points to directed graphs, networks, sinks, capacities, flows, and maximum flow.
