Stateless firewall

As explained in Acing the CCNA Exam: Volume 2 Advanced Networking and Security

A stateless firewall evaluates each packet independently without retaining or using connection state from other packets.

A stateless firewall evaluates every packet independently and permits or denies it without retaining connection state or considering whether it replies to earlier traffic. Router interface ACLs are a common example. section 11.5.1

Distinguish stateless filtering from stateful filtering by examining packet context:

  • Apply rules to packet attributes such as source and destination addresses or ports, without using relationships between packets. section 11.5.1
  • Do not automatically allow reply traffic merely because an internal host initiated the connection; that behavior requires a stateful firewall. section 11.5.1 section 11.6
  • Use router ACLs for stateless filtering, while stateful firewalls apply policies between zones such as Inside, Outside, and DMZ. section 11.5.1 section 11.6

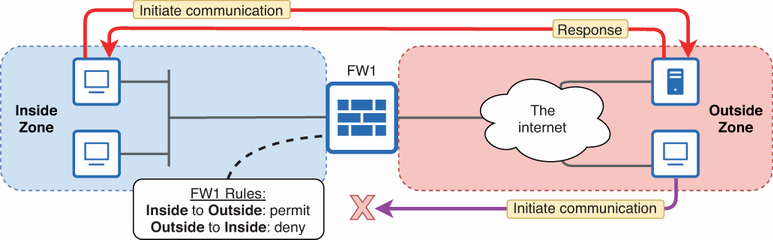

Figure 11.10 Simple firewall rules. Hosts in the Inside zone can initiate communications with hosts in the Outside zone, but hosts in the Outside zone cannot initiate communications with hosts in the Inside zone.

Compare the permitted Inside-to-Outside initiation with the blocked Outside-to-Inside initiation to see why stateful context matters. section 11.5.1

How Acing the CCNA Exam: Volume 2 Advanced Networking and Security covers it

How deep it goes
Defines per-packet filtering and contrasts it with stateful connection tracking, without describing ACL configuration commands.
Examples
Uses router ACLs and Inside-to-Outside versus Outside-to-Inside traffic to illustrate independent packet decisions.
What it assumes
Assumes basic understanding of packets, IP addresses, ports, and router interfaces.
What you can do after
Apply it via router interface ACLs to recognize filtering that lacks connection context.
How it connects
Connects ACLs with stateful firewalls, network zones, and DMZ placement.
