A tspan element is an SVG text subelement for positioning or styling part of a text label independently. SVG text does not automatically reflow like HTML, so separate tspans provide explicit control over multiline labels. section 5.2.3
Position and format each span with these attributes:
- Use x and y to place a text baseline relative to the SVG container. section 5.2.3
- Use dx and dy to shift a span relative to the preceding text or tspan element. section 5.2.3
- Remember that text-anchor controls horizontal baseline behavior and dominant-baseline controls vertical baseline behavior. section 5.2.3
- Combine tspan elements with opacity and font-size styling when individual lines need different visual emphasis. section 5.2.3
Multiline streamgraph axis label
const label = svg.append("text").attr("dominant-baseline", "hanging"); label.append("tspan").text("Total revenue"); label.append("tspan").text("(million USD)").attr("dx", 5); label.append("tspan").text("Adjusted for inflation").attr("x", 0).attr("dy", 20).attr("fill-opacity", 0.7).style("font-size", "14px"); The first two lines stay close together, while the third returns to x = 0 and moves downward by 20 units. section 5.2.3

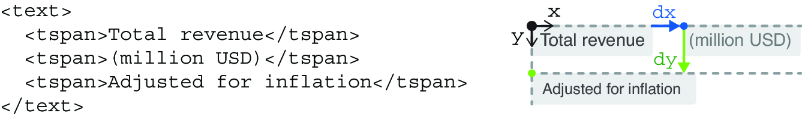

Figure 5.17 tspan elements allow for manipulating the style and position of subtext items separately. We use the attributes dx and dy to set a position relative to the previous text element.
Inspect how dx and dy position subtext relative to the preceding text element. section 5.2.3
