Chapter 1. What is Amazon Web Services?

Amazon Web Services (AWS) is a platform of web services offering solutions for computing, storing, and networking, at different layers of abstraction. You can use these services to host web sites, run enterprise applications, and mine tremendous amounts of data. The term web service means services can be controlled via a web interface. The web interface can be used by machines or by humans via a graphical user interface. The most prominent services are EC2, which offers virtual servers, and S3, which offers storage capacity. Services on AWS work well together; you can use them to replicate your existing on-premises setup or design a new setup from scratch. Services are charged for on a pay-per-use pricing model.

As an AWS customer, you can choose among different data centers. AWS data centers are distributed in the United States, Europe, Asia, and South America. For example, you can start a virtual server in Japan in the same way you can start a virtual server in Ireland. This enables you to serve customers worldwide with a global infrastructure.

The map in figure 1.1 shows the data centers available to all customers.

In more general terms, AWS is known as a cloud computing platform.

1.1. What is cloud computing?

Almost every IT solution is labeled with the term cloud computing or just cloud nowadays. A buzzword may help to sell, but it’s hard to work with in a book.

Cloud computing, or the cloud, is a metaphor for supply and consumption of IT resources. The IT resources in the cloud aren’t directly visible to the user; there are layers of abstraction in between. The level of abstraction offered by the cloud may vary from virtual hardware to complex distributed systems. Resources are available on demand in enormous quantities and paid for per use.

Here’s a more official definition from the National Institute of Standards and Technology:

Cloud computing is a model for enabling ubiquitous, convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction.

The NIST Definition of Cloud Computing, National Institute of Standards and Technology

Clouds are often divided into the following types:

AWS is a public cloud. Cloud computing services also have several classifications:

The AWS product portfolio contains IaaS, PaaS, and SaaS. Let’s take a more concrete look at what you can do with AWS.

1.2. What can you do with AWS?

You can run any application on AWS by using one or a combination of services. The examples in this section will give you an idea of what you can do with AWS.

1.2.1. Hosting a web shop

John is CIO of a medium-sized e-commerce business. His goal is to provide his customers with a fast and reliable web shop. He decided to host the web shop on-premises, and three years ago he rented servers in a data center. A web server handles requests from customers, and a database stores product information and orders. John is evaluating how his company can take advantage of AWS by running the same setup on AWS, as shown in figure 1.2.

John realized that other options are available to improve his setup on AWS with additional services:

Figure 1.3 shows how John enhanced the web shop setup with AWS.

John started a proof-of-concept project and found that his web application can be transferred to AWS and that services are available to help improve his setup.

1.2.2. Running a Java EE application in your private network

Maureen is a senior system architect in a global corporation. She wants to move parts of the business applications to AWS when the company’s data-center contract expires in a few months, to reduce costs and gain flexibility. She found that it’s possible to run enterprise applications on AWS.

To do so, she defines a virtual network in the cloud and connects it to the corporate network through a virtual private network (VPN) connection. The company can control access and protect mission-critical data by using subnets and control traffic between them with access-control lists. Maureen controls traffic to the internet using Network Address Translation (NAT) and firewalls. She installs application servers on virtual machines (VMs) to run the Java EE application. Maureen is also thinking about storing data in a SQL database service (such as Oracle Database Enterprise Edition or Microsoft SQL Server EE). Figure 1.4 illustrates Maureen’s architecture.

Maureen has managed to connect the on-premises data center with a private network on AWS. Her team has already started to move the first enterprise application to the cloud.

1.2.3. Meeting legal and business data archival requirements

Greg is responsible for the IT infrastructure of a small law office. His primary goal is to store and archive all data in a reliable and durable way. He operates a file server to offer the possibility of sharing documents within the office. Storing all the data is a challenge for him:

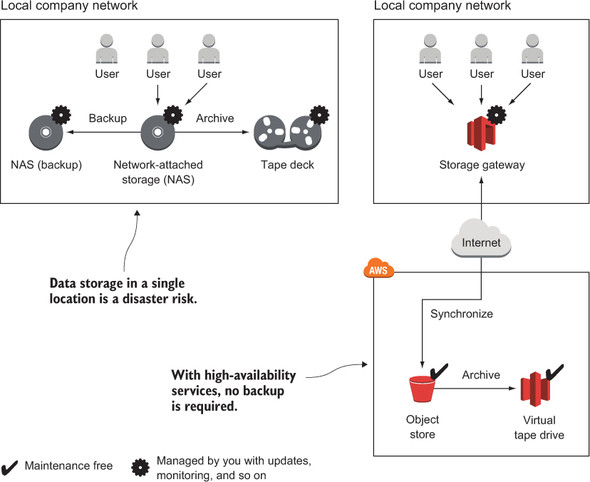

To save money and increase data security, Greg decided to use AWS. He transferred data to a highly available object store. A storage gateway makes it unnecessary to buy and operate network-attached storage and a backup on-premises. A virtual tape deck takes over the task of archiving data for the required length of time. Figure 1.5 shows how Greg implemented this use case on AWS and compares it to the on-premises solution.

Greg is fine with the new solution to store and archive data on AWS because he was able to improve quality and he gained the possibility of scaling storage size.

1.2.4. Implementing a fault-tolerant system architecture

Alexa is a software engineer working for a fast-growing startup. She knows that Murphy’s Law applies to IT infrastructure: anything that can go wrong, will go wrong. Alexa is working hard to build a fault-tolerant system to prevent outages from ruining the business. She knows that there are two type of services on AWS: fault-tolerant services and services that can be used in a fault-tolerant way. Alexa builds a system like the one shown in figure 1.6 with a fault-tolerant architecture. The database service is offered with replication and failover handling. Alexa uses virtual servers acting as web servers. These virtual servers aren’t fault tolerant by default. But Alexa uses a load balancer and can launch multiple servers in different data centers to achieve fault tolerance.

So far, Alexa has protected the startup from major outages. Nevertheless, she and her team are always planning for failure.

You now have a broad idea of what you can do with AWS. Generally speaking, you can host any application on AWS. The next section explains the nine most important benefits AWS has to offer.

1.3. How you can benefit from using AWS

What’s the most important advantage of using AWS? Cost savings, you might say. But saving money isn’t the only advantage. Let’s look at other ways you can benefit from using AWS.

1.3.1. Innovative and fast-growing platform

In 2014, AWS announced more than 500 new services and features during its yearly conference, re:Invent at Las Vegas. On top of that, new features and improvements are released every week. You can transform these new services and features into innovative solutions for your customers and thus achieve a competitive advantage.

The number of attendees to the re:Invent conference grew from 9,000 in 2013 to 13,500 in 2014.^[2] AWS counts more than 1 million businesses and government agencies among its customers, and in its Q1 2014 results discussion, the company said it will continue to hire more talent to grow even further.^[3] You can expect even more new features and services in the coming years.

²Greg Bensinger, “Amazon Conference Showcases Another Side of the Retailer’s Business,” Digits, Nov. 12, 2014, http://mng.bz/hTBo.

³“Amazon.com’s Management Discusses Q1 2014 Results - Earnings Call Transcript,” Seeking Alpha, April 24, 2014, http://mng.bz/60qX.

1.3.2. Services solve common problems

As you’ve learned, AWS is a platform of services. Common problems such as load balancing, queuing, sending email, and storing files are solved for you by services. You don’t need to reinvent the wheel. It’s your job to pick the right services to build complex systems. Then you can let AWS manage those services while you focus on your customers.

1.3.3. Enabling automation

Because AWS has an API, you can automate everything: you can write code to create networks, start virtual server clusters, or deploy a relational database. Automation increases reliability and improves efficiency.

The more dependencies your system has, the more complex it gets. A human can quickly lose perspective, whereas a computer can cope with graphs of any size. You should concentrate on tasks a human is good at—describing a system—while the computer figures out how to resolve all those dependencies to create the system. Setting up an environment in the cloud based on your blueprints can be automated with the help of infrastructure as code, covered in chapter 4.

1.3.4. Flexible capacity (scalability)

Flexible capacity frees you from planning. You can scale from one server to thousands of servers. Your storage can grow from gigabytes to petabytes. You no longer need to predict your future capacity needs for the coming months and years.

If you run a web shop, you have seasonal traffic patterns, as shown in figure 1.7. Think about day versus night, and weekday versus weekend or holiday. Wouldn’t it be nice if you could add capacity when traffic grows and remove capacity when traffic shrinks? That’s exactly what flexible capacity is about. You can start new servers within minutes and throw them away a few hours after that.

The cloud has almost no capacity constraints. You no longer need to think about rack space, switches, and power supplies—you can add as many servers as you like. If your data volume grows, you can always add new storage capacity.

Flexible capacity also means you can shut down unused systems. In one of our last projects, the test environment only ran from 7:00 a.m. to 8:00 p.m. on weekdays, allowing us to save 60%.

1.3.5. Built for failure (reliability)

Most AWS services are fault-tolerant or highly available. If you use those services, you get reliability for free. AWS supports you as you build systems in a reliable way. It provides everything you need to create your own fault-tolerant systems.

1.3.6. Reducing time to market

In AWS, you request a new virtual server, and a few minutes later that virtual server is booted and ready to use. The same is true with any other AWS service available. You can use them all on demand. This allows you to adapt your infrastructure to new requirements very quickly.

Your development process will be faster because of the shorter feedback loops. You can eliminate constraints such as the number of test environments available; if you need one more test environment, you can create it for a few hours.

1.3.7. Benefiting from economies of scale

At the time of writing, the charges for using AWS have been reduced 42 times since 2008:

As of December 2014, AWS operated 1.4 million servers. All processes related to operations must be optimized to operate at that scale. The bigger AWS gets, the lower the prices will be.

1.3.8. Worldwide

You can deploy your applications as close to your customers as possible. AWS has data centers in the following locations:

With AWS, you can run your business all over the world.

1.3.9. Professional partner

AWS is compliant with the following:

If you’re still not convinced that AWS is a professional partner, you should know that Airbnb, Amazon, Intuit, NASA, Nasdaq, Netflix, SoundCloud, and many more are running serious workloads on AWS.

The cost benefit is elaborated in more detail in the next section.

1.4. How much does it cost?

A bill from AWS is similar to an electric bill. Services are billed based on usage. You pay for the hours a virtual server was running, the used storage from the object store (in gigabytes), or the number of running load balancers. Services are invoiced on a monthly basis. The pricing for each service is publicly available; if you want to calculate the monthly cost of a planned setup, you can use the AWS Simple Monthly Calculator (http://aws.amazon.com/calculator).

1.4.1. Free Tier

You can use some AWS services for free during the first 12 months after you sign up. The idea behind the Free Tier is to enable you to experiment with AWS and get some experience. Here is what’s included in the Free Tier:

If you exceed the limits of the Free Tier, you start paying for the resources you consume without further notice. You’ll receive a bill at the end of the month. We’ll show you how to monitor your costs before you begin using AWS. If your Free Tier ends after one year, you pay for all resources you use.

You get some additional benefits, as detailed at http://aws.amazon.com/free. This book will use the Free Tier as much as possible and will clearly state when additional resources are required that aren’t covered by the Free Tier.

1.4.2. Billing example

As mentioned earlier, you can be billed in several ways:

Remember the web shop example from section 1.2? Figure 1.8 shows the web shop and adds information about how each part is billed.

Let’s assume your web shop started successfully in January, and you decided to run a marketing campaign to increase sales for the next month. Lucky you: you were able to increase the number of visitors of your web shop fivefold in February. As you already know, you have to pay for AWS based on usage. Table 1.1 shows your bills for January and February. The number of visitors increased from 100,000 to 500,000, and your monthly bill increased from 142.37 USD to 538.09 USD, which is a 3.7-fold increase. Because your web shop had to handle more traffic, you had to pay more for services, such as the CDN, the web servers, and the database. Other services, like the storage of static files, didn’t experience more usage, so the price stayed the same.

With AWS, you can achieve a linear relationship between traffic and costs. And other opportunities await you with this pricing model.

1.4.3. Pay-per-use opportunities

The AWS pay-per-use pricing model creates new opportunities. You no longer need to make upfront investments in infrastructure. You can start servers on demand and only pay per hour of usage; and you can stop using those servers whenever you like and no longer have to pay for them. You don’t need to make an upfront commitment regarding how much storage you’ll use.

A big server costs exactly as much as two smaller ones with the same capacity. Thus you can divide your systems into smaller parts, because the cost is the same. This makes fault tolerance affordable not only for big companies but also for smaller budgets.

1.5. Comparing alternatives

AWS isn’t the only cloud computing provider. Microsoft and Google have cloud offerings as well.

OpenStack is different because it’s open source and developed by more than 200 companies including IBM, HP, and Rackspace. Each of these companies uses OpenStack to operate its own cloud offerings, sometimes with closed source add-ons. You could run your own cloud based on OpenStack, but you would lose most of the benefits outlined in section 1.3.

Comparing cloud providers isn’t easy, because open standards are mostly missing. Functionality like virtual networks and message queuing are realized differently. If you know what features you need, you can compare the details and make your decision. Otherwise, AWS is your best bet because the chances are highest that you’ll find a solution for your problem.

Following are some common features of cloud providers:

The more interesting question is, how do cloud providers differ? Table 1.2 compares AWS, Azure, Google Cloud Platform, and OpenStack.

In our opinion, AWS is the most mature cloud platform available at the moment.

1.6. Exploring AWS services

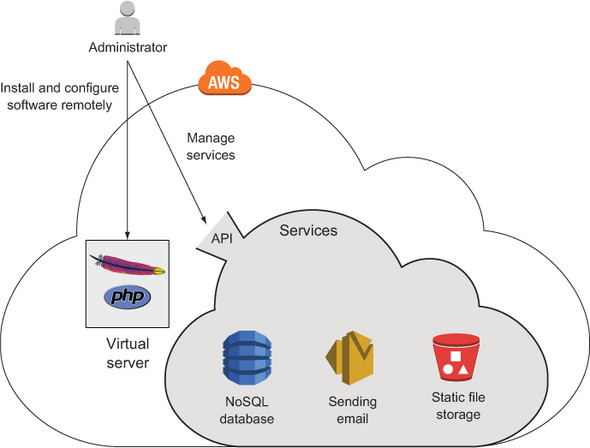

Hardware for computing, storing, and networking is the foundation of the AWS cloud. AWS runs software services on top of the hardware to provide the cloud, as shown in figure 1.9. A web interface, the API, acts as an interface between AWS services and your applications.

You can manage services by sending requests to the API manually via a GUI or programmatically via a SDK. To do so, you can use a tool like the Management Console, a web-based user interface, or a command-line tool. Virtual servers have a peculiarity: you can connect to virtual servers through SSH, for example, and gain administrator access. This means you can install any software you like on a virtual server. Other services, like the NoSQL database service, offer their features through an API and hide everything that’s going on behind the scenes. Figure 1.10 shows an administrator installing a custom PHP web application on a virtual server and managing dependent services such as a NoSQL database used by the PHP web application.

Users send HTTP requests to a virtual server. A web server is installed on this virtual server along with a custom PHP web application. The web application needs to talk to AWS services in order to answer HTTP requests from users. For example, the web application needs to query data from a NoSQL database, store static files, and send email. Communication between the web application and AWS services is handled by the API, as figure 1.11 shows.

The number of different services available can be scary at the outset. The following categorization of AWS services will help you to find your way through the jungle:

Be aware that we cover only the most important categories and services here. Other services are available, and you can also run your own applications on AWS.

Now that we’ve looked at AWS services in detail, it’s time for you to learn how to interact with those services.

1.7. Interacting with AWS

When you interact with AWS to configure or use services, you make calls to the API. The API is the entry point to AWS, as figure 1.12 demonstrates.

Next, we’ll give you an overview of the tools available to make calls to the AWS API. You can compare the ability of these tools to automate your daily tasks.

1.7.1. Management Console

You can use the web-based Management Console to interact with AWS. You can manually control AWS with this convenient GUI, which runs in every modern web browser (Chrome, Firefox, Safari ≥ 5, IE ≥ 9); see figure 1.13.

If you’re experimenting with AWS, the Management Console is the best place to start. It helps you to gain an overview of the different services and achieve success quickly. The Management Console is also a good way to set up a cloud infrastructure for development and testing.

1.7.2. Command-line interface

You can start a virtual server, create storage, and send email from the command line. With the command-line interface (CLI), you can control everything on AWS; see figure 1.14.

The CLI is typically used to automate tasks on AWS. If you want to automate parts of your infrastructure with the help of a continuous integration server like Jenkins, the CLI is the right tool for the job. The CLI offers a convenient way to access the API and combine multiple calls into a script.

You can even begin to automate your infrastructure with scripts by chaining multiple CLI calls together. The CLI is available for Windows, Mac, and Linux, and there’s also a PowerShell version available.

1.7.3. SDKs

Sometimes you need to call AWS from within your application. With SDKs, you can use your favorite programming language to integrate AWS into your application logic. AWS provides SDKs for the following:

SDKs are typically used to integrate AWS services into applications. If you’re doing software development and want to integrate an AWS service like a NoSQL database or a push-notification service, an SDK is the right choice for the job. Some services, such as queues and topics, must be used with an SDK in your application.

1.7.4. Blueprints

A blueprint is a description of your system containing all services and dependencies. The blueprint doesn’t say anything about the necessary steps or the order to achieve the described system. Figure 1.15 shows how a blueprint is transferred into a running system.

Consider using blueprints if you have to control many or complex environments. Blueprints will help you to automate the configuration of your infrastructure in the cloud. You can use blueprints to set up virtual networks and launch different servers into that network, for example.

A blueprint removes much of the burden from you because you no longer need to worry about dependencies during system creation—the blueprint automates the entire process. You’ll learn more about automating your infrastructure in chapter 4.

It’s time to get started creating your AWS account and exploring AWS practice after all that theory.

1.8. Creating an AWS account

Before you can start using AWS, you need to create an account. An AWS account is a basket for all the resources you own. You can attach multiple users to an account if multiple humans need access to the account; by default, your account will have one root user. To create an account, you need the following:

1.8.1. Signing up

The sign-up process consists of five steps:

1.  Provide your login credentials.

2.  Provide your contact information.

3.  Provide your payment details.

4.  Verify your identity.

5.  Choose your support plan.

Point your favorite modern web browser to https://aws.amazon.com, and click the Create a Free Account / Create an AWS Account button.

1. Providing your login credentials

The Sign Up page, shown in figure 1.16, gives you two choices. You can either create an account using your Amazon.com account or create an account from scratch. If you create the account from scratch, follow along. Otherwise, skip to step 5.

Fill in your email address, and select I Am a New User. Go on to the next step to create your login credentials. We advise you to choose a strong password to prevent misuse of your account. We suggest a password with 16 characters, numbers, and symbols. If someone gets access to your account, they can destroy your systems or steal your data.

2. Providing your contact information

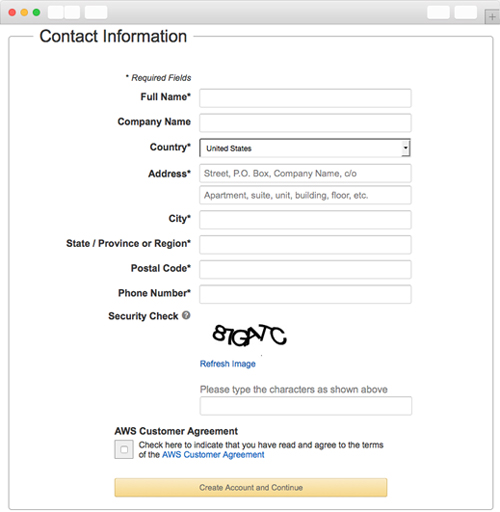

The next step, as shown in figure 1.17, is to provide your contact information. Fill in all the required fields, and continue.

3. Provide your payment details

Now the screen shown in figure 1.18 asks for your payment information. AWS supports MasterCard and Visa. You can set your preferred payment currency later, if you don’t want to pay your bills in USD; supported currencies are EUR, GBP, CHF, AUD, and some others.

4. Verifying your identity

The next step is to verify your identity. Figure 1.19 shows the first step of the process.

After you complete the first part, you’ll receive a call from AWS. A robot voice will ask you for your PIN, which will be like the one shown in figure 1.20. Your identity will be verified, and you can continue with the last step.

5. Choosing your support plan

The last step is to choose a support plan; see figure 1.21. In this case, select the Basic plan, which is free. If you later create an AWS account for your business, we recommend the Business support plan. You can even switch support plans later.

High five! You’re done. Now you can log in to your account with the AWS Management Console.

1.8.2. Signing In

You have an AWS account and are ready to sign in to the AWS Management Console at https://console.aws.amazon.com. As mentioned earlier, the Management Console is a web-based tool you can use to control AWS resources. The Management Console uses the AWS API to make most of the functionality available to you. Figure 1.22 shows the Sign In page.

Enter your login credentials and click Sign In Using Our Secure Server to see the Management Console, shown in figure 1.23.

The most important part is the navigation bar at the top; see figure 1.24. It consists of six sections:

Next, you’ll create a key pair so you can connect to your virtual servers.

1.8.3. Creating a key pair

To access a virtual server in AWS, you need a key pair consisting of a private key and a public key. The public key will be uploaded to AWS and inserted into the virtual server. The private key is yours; it’s like your password, but much more secure. Protect your private key as if it’s a password. It’s your secret, so don’t lose it—you can’t retrieve it.

To access a Linux server, you use the SSH protocol; you’ll authenticate with the help of your key pair instead of a password during login. You access a Windows server via Remote Desktop Protocol (RDP); you’ll need your key pair to decrypt the administrator password before you can log in.

The following steps will guide you to the dashboard of the EC2 service, which offers virtual servers, and where you can obtain a key pair:

1.  Open the AWS Management Console at https://console.aws.amazon.com.

2.  Click Services in the navigation bar, find the EC2 service, and click it.

3.  Your browser shows the EC2 Management Console.

The EC2 Management Console, shown in figure 1.25, is split into three columns. The first column is the EC2 navigation bar; because EC2 is one of the oldest services, it has many features that you can access via the navigation bar. The second column gives you a brief overview of all your EC2 resources. The third column provides additional information.

Follow these steps to create a new key pair:

1.  Click Key Pairs in the navigation bar under Network & Security.

2.  Click the Create Key Pair button on the page shown in figure 1.26.

3.  Name the Key Pair mykey. If you choose another name, you must replace the name in all the following examples!

During key-pair creation, you downloaded a file called mykey.pem. You must now prepare that key for future use. Depending on your operating system, you may need to do things differently, so please read the section that fits your OS.

Linux and Mac OS X

The only thing you need to do is change the access rights of mykey.pem so that only you can read the file. To do so, run chmod 400 mykey.pem in the terminal. You’ll learn about how to use your key when you need to log in to a virtual server for the first time in this book.

Windows

Windows doesn’t ship a SSH client, so you need to download the PuTTY installer for Windows from http://mng.bz/A1bY and install PuTTY. PuTTY comes with a tool called PuTTYgen that can convert the mykey.pem file into a mykey.ppk file, which you’ll need:

1.  Run the application PuTTYgen. The screen shown in figure 1.27 opens.

2.  Select SSH-2 RSA under Type of Key to Generate.

3.  Click Load.

4.  Because PuTTYgen displays only *.pkk files, you need to switch the file extension of the File Name field to All Files.

5.  Select the mykey.pem file, and click Open.

6.  Confirm the dialog box.

7.  Change Key Comment to mykey.

8.  Click Save Private Key. Ignore the warning about saving the key without a passphrase.

Your .pem file is now converted to the .pkk format needed by PuTTY. You’ll learn how to use your key when you need to log in to a virtual server for the first time in this book.

1.8.4. Creating a billing alarm

Before you use your AWS account in the next chapter, we advise you to create a billing alarm. If you exceed the Free Tier, an email is sent to you. The book warns you whenever an example isn’t covered by the Free Tier. Please make sure that you carefully follow the cleanup steps after each example. To make sure you haven’t missed something during cleanup, please create a billing alarm as advised by AWS: http://mng.bz/M7Sj.

1.9. Summary
