Control plane

As explained in Kubernetes in Action, Second Edition

A control plane is the cluster-management component that makes decisions about and controls the operation of worker resources.

A control plane is the brain of a Kubernetes cluster: it controls worker resources and provides one Kubernetes API for deploying applications across the cluster. Worker nodes run the applications; control plane nodes manage them. section 1.2.1

The control plane coordinates the cluster through several components:

• The Kubernetes API Server exposes the RESTful API through which engineers and other components create objects. section 1.2.3
• etcd persists objects created through the API; the API Server is the only component that communicates with it. section 1.2.3
• The Scheduler selects a worker node for each application instance. section 1.2.3
• Controllers bring API-created objects to life, sometimes communicating with external systems such as a cloud provider. section 1.2.3

Control plane components hold and control cluster state but do not run applications. They can run on one node in a non-production cluster or be replicated across multiple nodes for high availability; highly available clusters use at least three physical control plane nodes. section 1.2.1 section 1.2.3

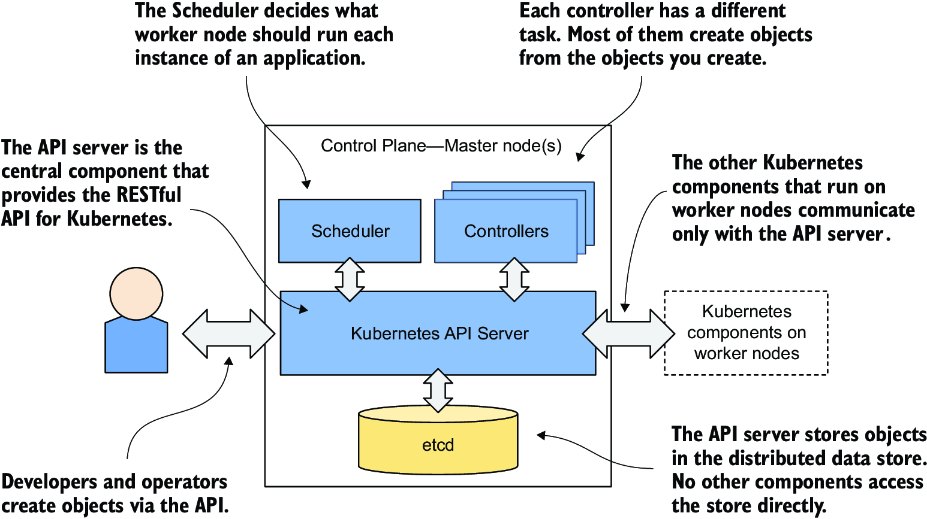

Figure 1.12 The components of the Kubernetes control plane

Use the control-plane component diagram to connect the API Server, etcd, Scheduler, and controllers with their cluster-management roles. section 1.2.3

How Kubernetes in Action, Second Edition covers it

How deep it goes

Defines the control plane, identifies its components and roles, and stops short of detailed component internals.

Examples

Uses control-versus-workload planes, a uniform deployment area, and API Server, etcd, Scheduler, and controller roles.

What it assumes

Introduces control planes, worker nodes, and their relationship without requiring prior cluster-component knowledge.

What you can do after

Evaluate Kubernetes cluster architecture by distinguishing management components from worker-node application execution.

How it connects

Connects control planes with worker nodes, the Kubernetes API, API Server, etcd, Scheduler, controllers, and high availability.
