Example Mapping

As explained in Architecture Modernization: Socio-technical alignment of software, strategy, and structure

Example Mapping is a collaborative technique for exploring rules, examples, and questions in greater detail around a behavior or requirement.

Example Mapping is a collaborative technique for uncovering scenarios, edge cases, and hidden complexity around a specific behavior or requirement. Combined with EventStorming, it zooms into a small area of the domain at greater granularity. section 7.4.1

An EventStorming-flavored mapping proceeds by:

• Picking an event from the timeline and identifying the action that triggers it. section 7.4.1
• Adding scenarios between the action and resulting event, including alternative outcomes and edge cases. section 7.4.1
• Encouraging creative scenario generation, then splitting scenarios when separate actions or more explicit concepts emerge. section 7.4.1

Order cancellation

The Order Canceled event may follow the Cancel Order action. If a customer requests a refund after the order has left the warehouse, the scenario produces Cancelation Denied instead. section 7.4.1

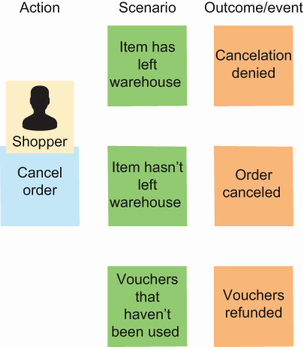

Figure 7.20 EventStorming-flavored Example Mapping

Use the visual mapping to inspect how actions, scenarios, and events are arranged. section 7.4.1

How Architecture Modernization: Socio-technical alignment of software, strategy, and structure covers it

How deep it goes

Explains a focused workflow from event selection through scenario generation and concept splitting.

Examples

Uses order cancellation, warehouse departure, refunds, Order Canceled, and Cancelation Denied as concrete scenarios.

What it assumes

Assumes an EventStorming timeline containing an event that participants can inspect.

What you can do after

Apply it in a collaborative workshop to expose hidden scenarios and decide when concepts need separation.

How it connects

Connects Example Mapping with EventStorming, events, actions, scenarios, and edge cases.
