Graphlet

As explained in Graph Algorithms for Data Science

A graphlet is a node position within a distinctly connected subgraph consisting of a specified number of nodes.

A graphlet records a node’s position in a distinctly connected subgraph containing a specified number of nodes. Counting graphlets encodes the node’s direct neighborhood, helping compare users with similar network roles even when they are not adjacent. section 8.1.1

In a directed follower network, graphlet counts describe local relationship patterns:

• A two-node graphlet contains two nodes and directed relationships; its positions represent outgoing, incoming, or bidirectional connections. section 8.1.1
• Count the position occupied by a node: outgoing connections count one position, incoming degree counts another, and mutual following represents a friend pattern. section 8.1.1
• An analyst can calculate incoming and outgoing degrees for every user and store friend-pattern counts as node properties. section 8.1.1

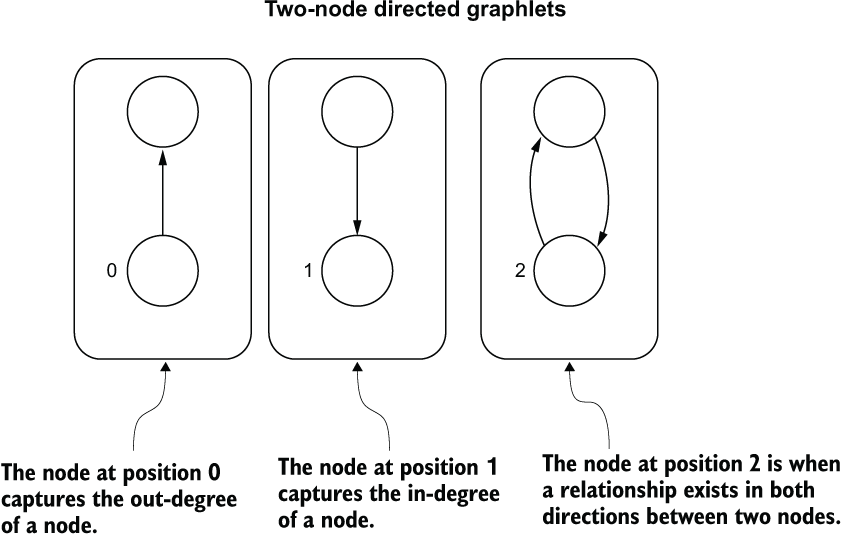

Figure 8.4 Two-node graphlets

Use the two-node graphlet diagrams to distinguish directed relationship patterns and their node positions. section 8.1.1

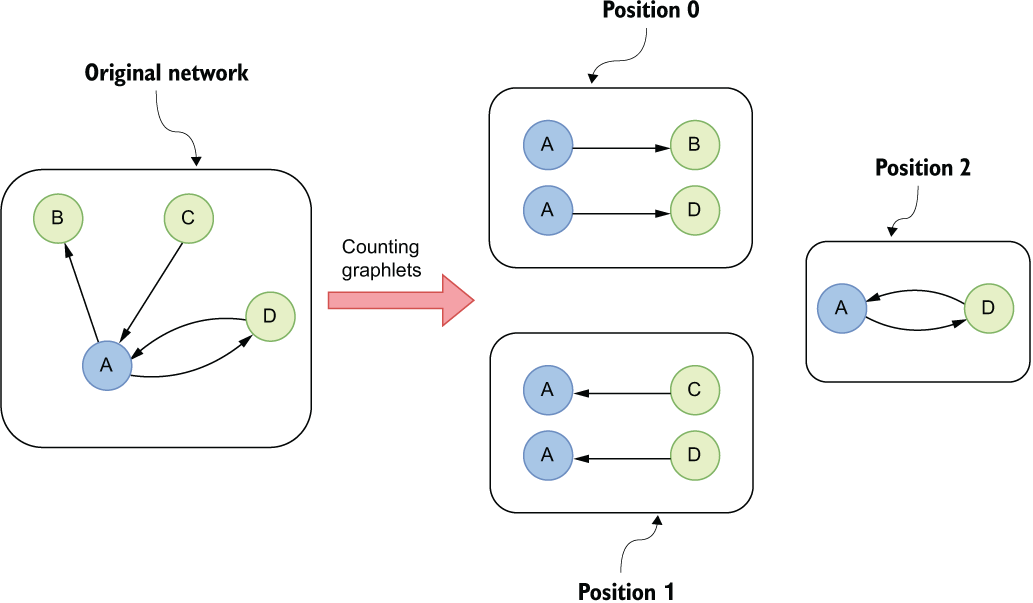

Figure 8.5 Counting two-node graphlets

Use the counting diagram to connect graphlet positions with a node’s incoming, outgoing, and mutual relationships. section 8.1.1

How Graph Algorithms for Data Science covers it

How deep it goes

Defines graphlets and works through two-node directed counts, while only introducing three-node graphlets for further analysis.

Examples

Uses a directed follower network, incoming and outgoing degrees, mutual following, and stored friend-pattern counts.

What you can do after

Practice/perform graphlet counting by measuring user degrees and storing friend-pattern counts as node properties.

How it connects

Connects graphlets to motifs, local neighborhood features, node roles, and network similarity analysis.
