Computation graph

As explained in Build a Reasoning Model (From Scratch)

A recorded graph of differentiable operations in PyTorch that enables gradient computation during backpropagation.

PyTorch records each differentiable operation connecting model parameters to an output. This computation graph lets a later backward pass compute gradients for updating model weights. section 6.8

Use the graph correctly when computing sequence-level log probabilities:

• Remove torch.inference_mode() when gradients are needed; inference mode prevents PyTorch from tracking the operations. section 6.8
• Sum the selected token log probabilities so the sequence score remains connected to the model through the graph. section 6.8
• Check the result for a grad_fn such as SumBackward0, which indicates that backpropagation can proceed through the score. section 6.8

Inspecting a sequence score

A computed value such as tensor(-16.2998, grad_fn=<SumBackward0>) shows that the summed log probability is attached to a computation graph rather than detached as an ordinary number. section 6.8

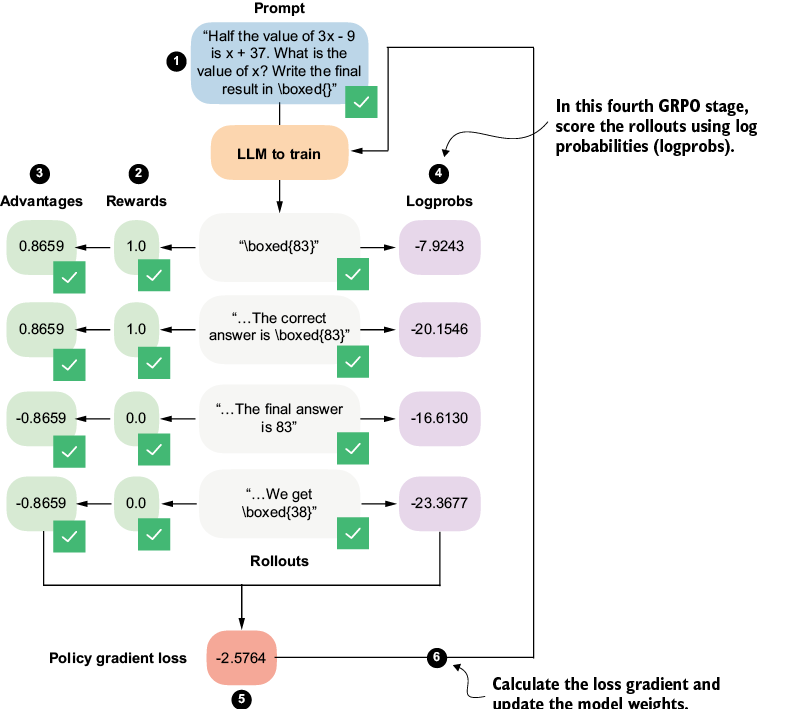

Figure 6.16 The fourth stage in the GRPO pipeline computes log probabilities for each rollout. It is related to the logprob scorer we developed in the previous chapter.

Places differentiable log-probability computation as the fourth stage of the GRPO rollout pipeline. section 6.8

How Build a Reasoning Model (From Scratch) covers it

How deep it goes

Defines operation recording and gradient propagation, then stops short of requiring a detailed graph tutorial.

Examples

Uses sequence-level log-probability code, SumBackward0 output, and rollout scoring to expose graph participation.

What it assumes

Assumes PyTorch tensor and model operations, while treating detailed computation-graph internals as optional background.

What you can do after

Apply it via PyTorch by retaining gradients through sequence scores for policy-training updates.

How it connects

Connects differentiable operations with gradients, backpropagation, backward passes, policy optimization, and model parameters.

liveBookmanning.com

Read Build a Reasoning Model (From Scratch) on liveBook Get the book at manning.com

Also explained in

•

  liveBookmanning.com
  Fast Python: High performance techniques for large datasets
•

  liveBookmanning.com
  Deep Learning with R, Third EditionA computation graph is a directed representation of operations and their data dependencies used to evaluate computations and derivatives.
•

  liveBookmanning.com
  Deep Learning with Python, Third EditionA directed acyclic graph that represents a computation as operations and intermediate values, enabling automatic differentiation.
•

  liveBookmanning.com
  Deep Learning with PyTorch, Second EditionA graph representation captured from model execution that records operations and data flow.
•

  liveBookmanning.com
  Machine Learning Algorithms in DepthA graph representation in which nodes and edges describe the composition and flow of computations.
•

  liveBookmanning.com
  Learn Generative AI with PyTorchA directed graph of mathematical operations and data flow used to compute gradients in deep learning.

Compare how 7 books explain computation graph →

Related concepts

• backpropagationused by · Backpropagation is a procedure for computing derivatives of an output or loss with respect to inputs and parameters by applying the chain rule backward through a computational graph.
• directed graphkind of · A directed graph is a graph whose edges have an orientation from a source vertex to a destination vertex.
• Daskused by · Dask is an open-source Python library for parallel and distributed computing using task graphs and scalable data structures for large or partitioned workloads.
• scheduleruses · A scheduler is a system component that selects, orders, dispatches, or assigns execution resources to tasks according to timing, dependency, placement, or other scheduling criteria.
• directed acyclic graphkind of · A directed acyclic graph is a graph with directed edges and no directed cycles.
• PyTorchuses · PyTorch is an open-source machine-learning framework for Python that provides tensor computation, automatic differentiation, and tools for building and training neural networks.

This explainer was generated by Manning's knowledge graph from the text of Build a Reasoning Model (From Scratch). The section links point to the parts of the book it draws on.
