Margin

As explained in Machine Learning Algorithms in Depth

A margin is the distance between a classifier's decision boundary and the nearest training examples or class-separating boundaries.

A margin is the distance between a classifier’s decision boundary and its nearest training examples. A desirable boundary classifies every example correctly while remaining as far away as possible. section 5.3

For each training example, denote its distance from the decision boundary by γᵢ. Maximum-margin classification maximizes the smallest distance, max[minᵢ γᵢ], rather than optimizing any single example’s distance. section 5.3

The SVM formulation connects margin maximization to constrained optimization:

• Minimize the regularized loss by choosing parameters θ with a small L2 norm. section 5.3
• Constrain every training example to remain correctly classified. section 5.3
• As ||θ|| decreases, the distance proportional to 1/||θ|| increases, pushing the margin boundaries apart. section 5.3
• Examples on the final margin boundaries become support vectors; these points suffice to learn the SVM parameters. section 5.3

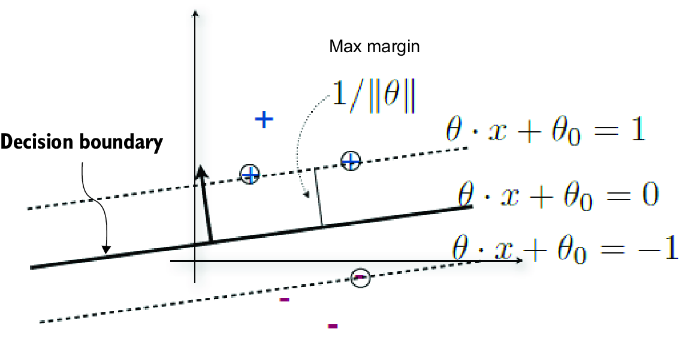

Figure 5.8 Max margin solution of SVM classifier

Shows the maximum-margin SVM solution, including the decision boundary, margin boundaries, and support vectors. section 5.3

How Machine Learning Algorithms in Depth covers it

How deep it goes

Derives a max-min distance objective and its quadratic-program formulation, then stops short of further optimization details.

Examples

Uses training examples, margin boundaries, support vectors, and a maximum-margin SVM diagram.

What you can do after

Evaluate classifiers by their nearest-example distance and understand why support vectors determine the maximum-margin solution.

How it connects

Links decision boundaries, regularization, quadratic programming, and support vectors.
