Anomaly detection

As explained in Machine Learning Algorithms in Depth

A technique for identifying observations that differ substantially from established data patterns.

Anomaly detection identifies observations that differ substantially from established data patterns. In unsupervised learning, a point far from existing clusters can be treated as an anomaly without labeled targets. section 1.1

For time series, an LSTM-VAE learns normal behavior from nonanomalous data. It outputs the log probability of each sensor input under learned Gaussian parameters; an anomaly lowers that likelihood, which can then be thresholded. section 11.1.1

The VAE detector proceeds through these modeling steps:

• Represent each of n sensors with a mean and variance, producing 2n output parameters under a Gaussian likelihood. section 11.1.1
• Embed the input signals jointly in a latent Gaussian space that approximates standard normal N(0,1) by minimizing KL divergence. section 11.1.1
• Train with an objective that maximizes average sensor log likelihood while structuring the latent embedding. section 11.1.1
• Score new inputs through their log likelihood and signal anomalies when the score drops below a selected threshold. section 11.1.1

Square-wave time series

A simple square-wave input produces a detectable drop in log likelihood when anomalous behavior occurs. Training also shows decreasing total loss across epochs. section 11.1.1

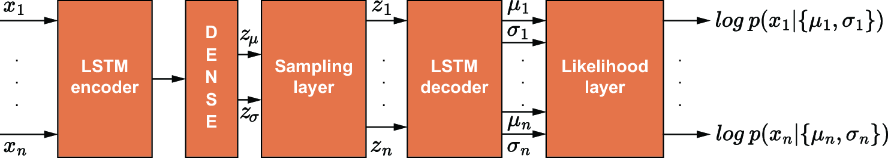

Figure 11.3 LSTM-VAE anomaly detector architecture

Use the architecture figure to trace the LSTM-VAE from multivariate time-series inputs through latent sampling to probabilistic anomaly scores. section 11.1.1

How Machine Learning Algorithms in Depth covers it

How deep it goes

Derives Gaussian likelihoods, latent-space regularization, training objectives, thresholding, and a from-scratch LSTM-VAE implementation.

Examples

Uses distant points from clusters, multivariate sensor signals, a square wave, and the Numenta Anomaly Benchmark.

What you can do after

Implement an LSTM-VAE anomaly detector from scratch with Keras/TensorFlow and threshold log-likelihood drops.

How it connects

Connects unsupervised learning, clustering, variational autoencoders, LSTMs, Gaussian likelihoods, latent spaces, and KL divergence.
