Computed tomography

As explained in Geometry for Programmers

An imaging technique that reconstructs cross-sectional or volumetric representations of internal structures from measurements taken around an object, typically x-ray measurements.

Computed tomography (CT) reconstructs internal structures from many x-ray measurements taken around an object. A scanner compares emitted radiation with the lower energy detected after passage through the body, then combines measurements from different angles into a 3D image whose voxels store radiodensity. section 12.1

The reconstruction process connects physical measurements with a small mathematical model:

• A single x-ray view records total radiodensity along each ray, but cannot uniquely locate individual bones, tissues, or airways. section 12.1
• Many views provide enough constraints to compute the unknown voxel values by solving a series of linear systems. section 12.1
• A four-pixel 2D slice makes the geometry concrete: two two-pixel x-ray scans from different angles help determine values a11, a12, a21, and a22. section 12.1

From a scanned part to a replacement

CT can capture a train, ship, or airplane part whose original blueprints are unavailable. The scan can support a boundary representation, which can then be milled, converted into a triangle mesh for 3D printing, or retained as smooth parametric surfaces for manufacturing. section 12.5

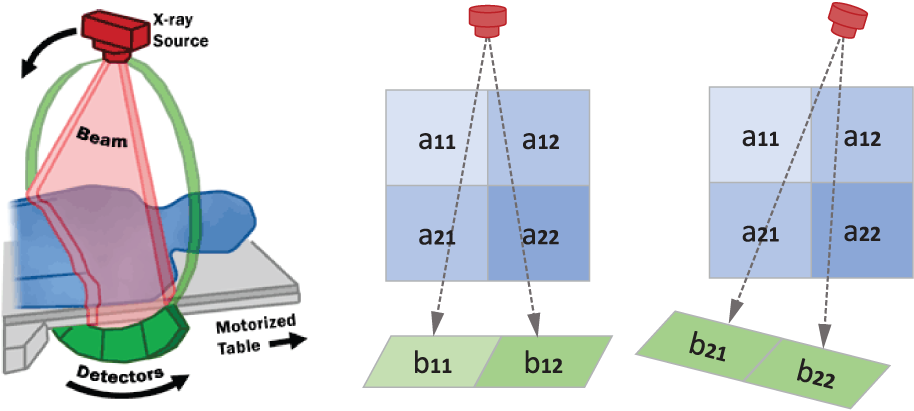

Figure 12.2 A CT scan scheme (FDA, public domain, via Wikimedia Commons), and our simplified example. We take two 1D x-ray pictures at a different angle (first b₁₁, b₁₂ and then b₂₁, b₂₂) to compute a single 2D scan ([[a₁₁, a₁₂], [a₂₁, a₂₂]]).

Use the scan scheme to relate angled 1D x-ray measurements to the reconstructed 2D pixel grid. section 12.1

How Geometry for Programmers covers it

How deep it goes

Explains detector measurements, radiodensity, a four-pixel reconstruction, and linear systems, stopping short of full reconstruction algorithms.

Examples

Uses a four-pixel slice, Hounsfield-unit tissue values, and replacement-part scanning for milling or 3D printing.

What it assumes

Assumes familiarity with pixels and basic geometry while introducing voxels, radiodensity, ray paths, and linear-system reconstruction.

What you can do after

Evaluate how angled x-ray measurements constrain voxel values and apply CT data to reproduce manufactured parts.

How it connects

Connects x-ray imaging, voxels, radiodensity, linear systems, boundary representation, parametric surfaces, triangle meshes, and SDFs.
